ID Mounted Electric Pipe Beveling Machine Cold Working Portable Pipe Beveler

Product Categories
Zhejiang Wellnit Mechanical Technology Co.,Ltd
Contact Now

ID Mounted Electric Pipe Beveling Machine Cold Working Portable Pipe Beveler

  • 1
  • 2
  • 3

Brand Name : Wellnit

Model Number : ISM-159

Certification : ISO9001

Place of Origin : China

MOQ : Negotiable

Payment Terms : T/T

Supply Ability : 50 sets for a mounth

Delivery Time : within 7 days after received 100% payment

Packaging Details : plywooden

Supply Power : 220-240V 50-60Hz

Operation Type : Electric

Thickness for tube : Less than 15 (Standard)

Circle Speed : 35r/min

working type : No Spark,Cold Working

installation : Inside Mounted

Power for motor : 1600W

Working Range : 65-159mm(ID-OD)

Price : Negotiable

Contact Now

ID Mounted Electric Pipe Beveling Machine Cold Working Portable Pipe Beveler

Main performance of the product

This series is ID-Mounted pipe beveling machine,with the following advantages:Easy operation, light weight and convenient to carry. The ID-Mounted pipe beveling machines use expanding mandrel to holding itself against on the internal surface of pipe via the open end of pipe. A draw nut is tightened,Which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.It's can work with various material pipe,beveling angle as per your required.

Technical characteristics

This series is ID Mounted Welding Preparation Pipe Chamfering Tool with the following advantages:

  • Lighter weight,minimal radial space,Easy to operate.
  • A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
  • Driveing Type:Electric-ISE,Pneumatic-ISP.
  • Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
  • Angle:Beveling angle as per your required.

Technical data:

ID Mounted Electric Pipe Beveling Machine Cold Working Portable Pipe Beveler

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. Or 30 days , it's depend to quantity.

Q: What is your terms of payment ?

A: 1) T/T 50% deposit, the Balance shall be paid after the goods inspected but before the shipment;

2) If all the cost is less than USD $ 10000, T/T 100% required in advance.

Technical Parameter

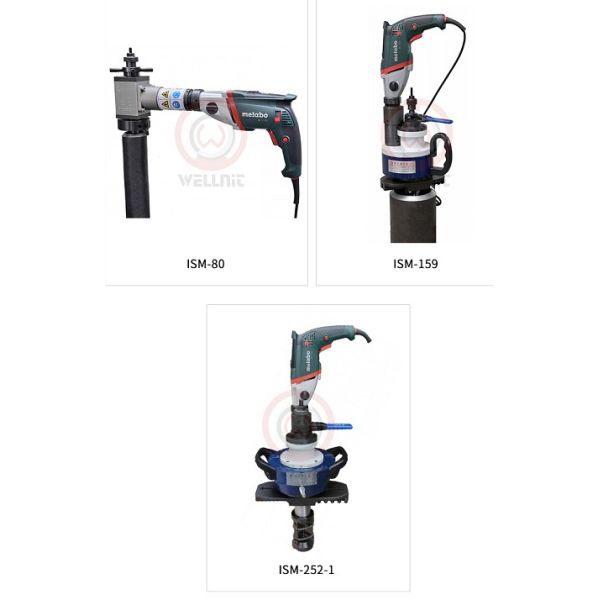

ISM-159 Beveling Machine
Voltage 220-240V
Frequency 50/60Hz
Power 1600W
Wall Thickness ≦15
Working Range 65-159mm
Rotation Speed 35r/min
Net Weight 32kg

Non-standard machines are available according to customers’requirement.

ID Mounted Electric Pipe Beveling Machine Cold Working Portable Pipe BevelerID Mounted Electric Pipe Beveling Machine Cold Working Portable Pipe BevelerID Mounted Electric Pipe Beveling Machine Cold Working Portable Pipe Beveler

ID Mounted Electric Pipe Beveling Machine Cold Working Portable Pipe Beveler
